Intelligent monitoring of Webasto batteries

With the Field Data Monitoring device, manufacturers of electric vehicles can collect and evaluate diagnostic data from the Webasto CV Standard Battery System. Fast software updates, remote maintenance by specialist personnel and the use of extended warranty services (Guarantee Plus) are also possible with the help of the data obtained. The compact retrofittable device regularly sends this data to the Webasto Cloud backend via the mobile network. This gives machine manufacturers and Webasto an overview of the current performance data and the condition of the vehicle batteries. FDM Connect is compatible with trucks, light commercial vehicles, buses and off-road vehicles.

Benefits of Field Data Monitoring (FDM) Connect

Over-the-air updates (OTA)

Webasto can quickly and easily update or upgrade the battery software remotely.

Troubleshooting and maintenance

Thanks to the remote diagnostics function, any malfunctions that occur can quickly be fixed remotely. Maintenance can also be carried out remotely.

Reduction in costs

Expensive tools and on-site visits are no longer necessary, resulting in fast response times and considerable cost savings.

Guarantee Plus

The battery data is uploaded to the Webasto Cloud on a monthly basis. This allows compliance with the contractually agreed battery usage to be checked. This is the prerequisite for an extended Guarantee Plus warranty offer.

Future-proof services

The use of additional digital services will be possible in the future simply by updating the software over the air.

Product details

Product specifications



  • Dimensions in mm (L x W x H): 112.2 x 69.6 x 18.72
  • Weight in grams: 53
  • Integration in CAN communication of the vehicle via CAN2.0B and SAE J1939
  • Data transmission via integrated mobile radio and GPS antennas via 2G or LTE CAT M1
  • Possible regions of use: Countries of the European Union, Switzerland, Great Britain, Norway, Iceland, Liechtenstein

Downloads

Contact us

If you have questions or want to know more about Field Data Monitoring (FDM) Connect from Webasto, please fill in the contact form below. We will get back to you as soon as possible.

More solutions

  • High Voltage Heater

    Webasto high voltage heater (HVH) provides efficient, near-lossless DC-to-heat conversion for BEVs/PHEVs with 5–12 kW outputs, compact, OEM-ready integration
    Learn more

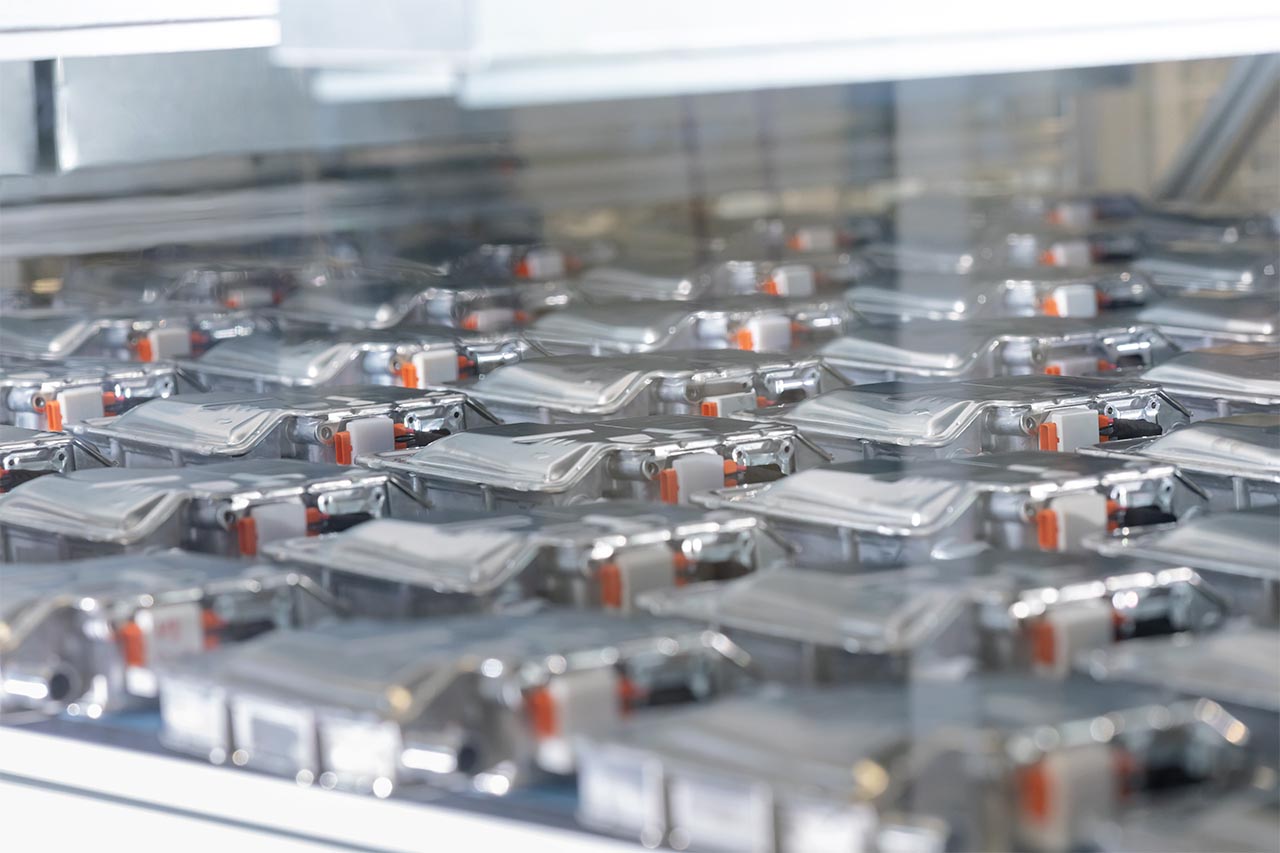

    Dense array of rectangular HV battery housings with orange connectors on assembly trays, illustrating Webasto battery systems production and inspection.
