Power Test System
MI-TS-3871

Multi-channel system for energy-saving tests and simulations

The MI-TS system is more than just a battery tester. It is a comprehensive testing powerhouse designed to handle a wide range of tasks. Need to analyze battery performance through charging, discharging, and simulation? The MI-TS has you covered. It can also efficiently load fuel cells and evaluate critical components like contactors, fuses, and DC motors used in drive trains. But the MI-TS does not stop there. Its versatility extends to testing charging columns and even providing power for train maintenance, making it an invaluable tool for diverse testing needs.



Safety is paramount with the MI-TS. This system adheres to stringent PLd safety standards and incorporates features like emergency stops and isolated outputs to prioritize user and equipment protection. Control is also a breeze thanks to its versatile interface options like Modbus TCP/IP, CAN-Bus, and SCPI. Additionally, optional compatibility with Profibus, Profinet, and LabView allows for a truly customized testing experience. With exceptional power delivery, short-circuit protection, and precise control, the MI-TS delivers top-notch performance for reliable results.

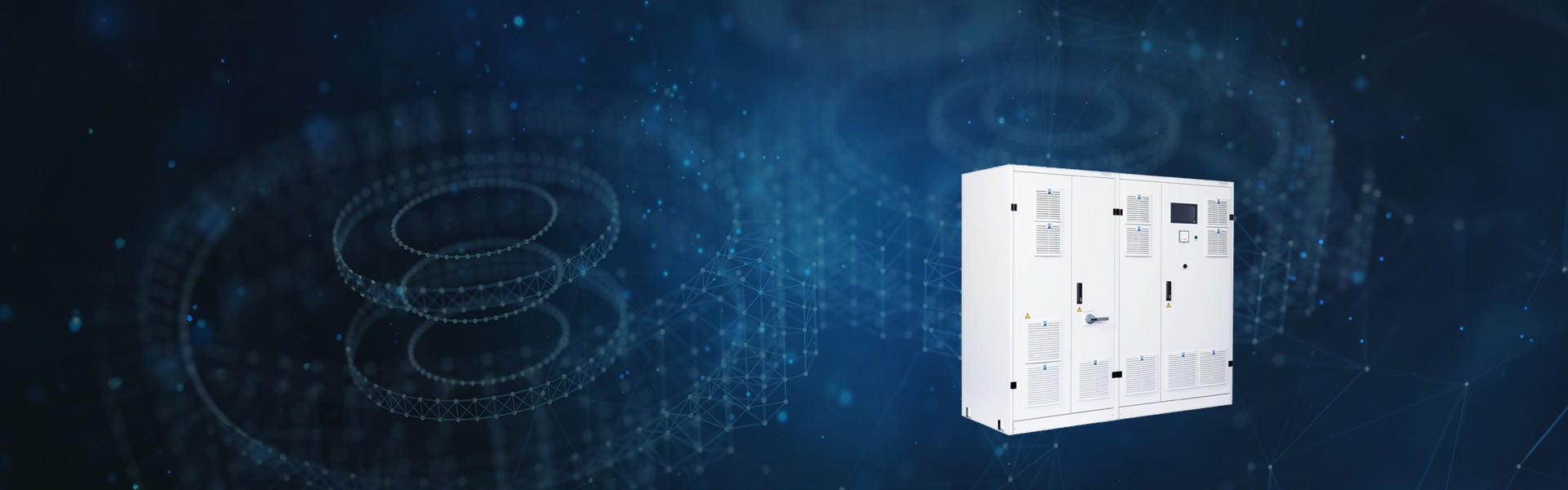

Product picture of Power Test System I-TS-3870

Benefits of Power Test System MI-TS-3871

Multi-channel system for energy-saving tests and simulations. Two or four outputs, up to 1200 V and 1200 A per output (without galvanic isolation between the DC outputs).

Powerful testing

Handles batteries, fuel cells, powertrains (up to 1200 V / 1200 A), scales to 1.3 MW in parallel.

Prioritized safety

Meets PLd safety standards with emergency stops and isolated outputs.

Versatile control

Operates with Modbus TCP/IP, CAN-Bus, SCPI, with optional Profibus, Profinet, LabView, and Ethernet compatibility.

Expandable functionality

Offers optional features like insulation monitoring, parallel operation, power distribution switch boxes, discharge unit, water cooling, and an overload variant for short-term high-load testing.

Technical data Power Test System MI-TS-3871

Technical specifications

AC - Input Voltage / AC – Input Frequency480 V ± 10 %, 3-phase, PE, 60 Hz ± 5 %
*Other voltages available upon request
Measuring resolutionVoltage: 16 Bit ADC
Current: 16 Bit ADC
Control accuracyVoltage 0.05 % fs
Current 0.05 % fs
Voltage tolerance dynamic (0 – 100 % INom in 3 ms)< 3 % fs
Voltage ripple≤ 0.1 % eff. fs
Current ripple≤ 0.1 % eff. fs
Short circuit behaviorShort circuit proof (Icw < 3 kA)
Permissible ambient temperature+5 to +40 °C
Climate class

1K21/1M11 according to EN60721 (85 % relative humidity non condensing

with cabinet heating up to 95 % relative humidity without condensing)

Distance from ceiling min.300 (standard, IP20)
Installation

Operating area with restricted access

installation on non-flammable floor

Protection classIP20 according to IEC 60529, others on request
SafetyEN ISO 13849-1
Basic standardEN 62040
EMCEN 61000-2-4 grid disturbances
EN 61000-6-2 interference immunity
EN 61000-6-4 interference emission
EN 61800-3 Kat C2 (A1) variable – speed electrical drives

Downloads

Power Test System MI-TS-3871 - Datasheet

Size
4 MB
Format
application/pdf
Download

Contact us

If you have questions or want to know more about Power Test Systems, please fill in the contact form below. We will get back to you as soon as possible.

More solutions

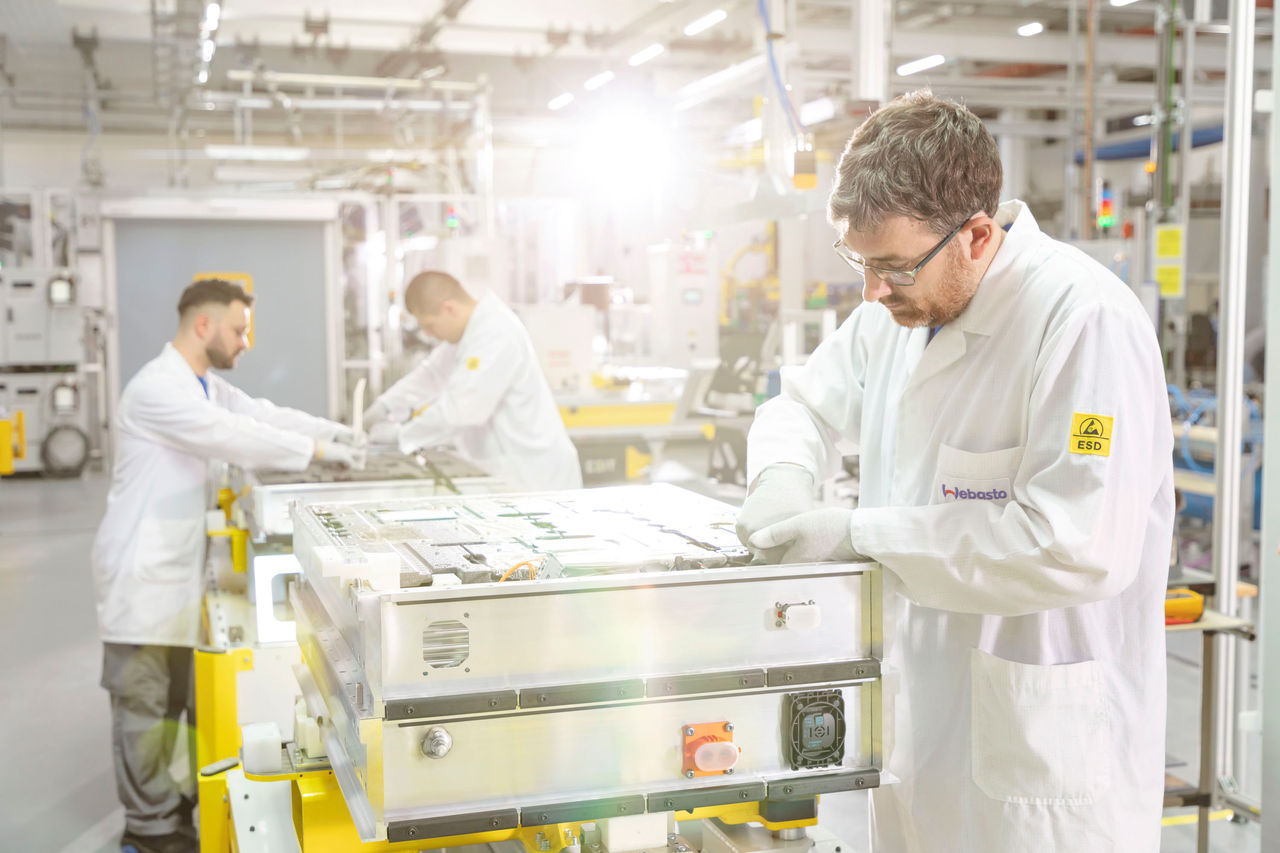

  • Battery Solutions for OEM
