Power Test System
ABC-150

Dual channel cycling station

The ABC-150 was originally developed to support the design and development of the drivetrain and subsystems of the GM EV1, the first modern electric car. All Webasto power cycling systems are equipped with a real-time clock on the system’s control board that enables measurement of Ah and kWh during cycling.



The ABC-150 offers power up to 125 kW, with a voltage range of 8 to 445 VDC and a current range of ±530 ADC. The ABC-150 is now the worldwide standard for the testing of advanced batteries, fuel cells, capacitors and other alternative energy technologies in the automotive, aerospace, stationary power and defense industries.

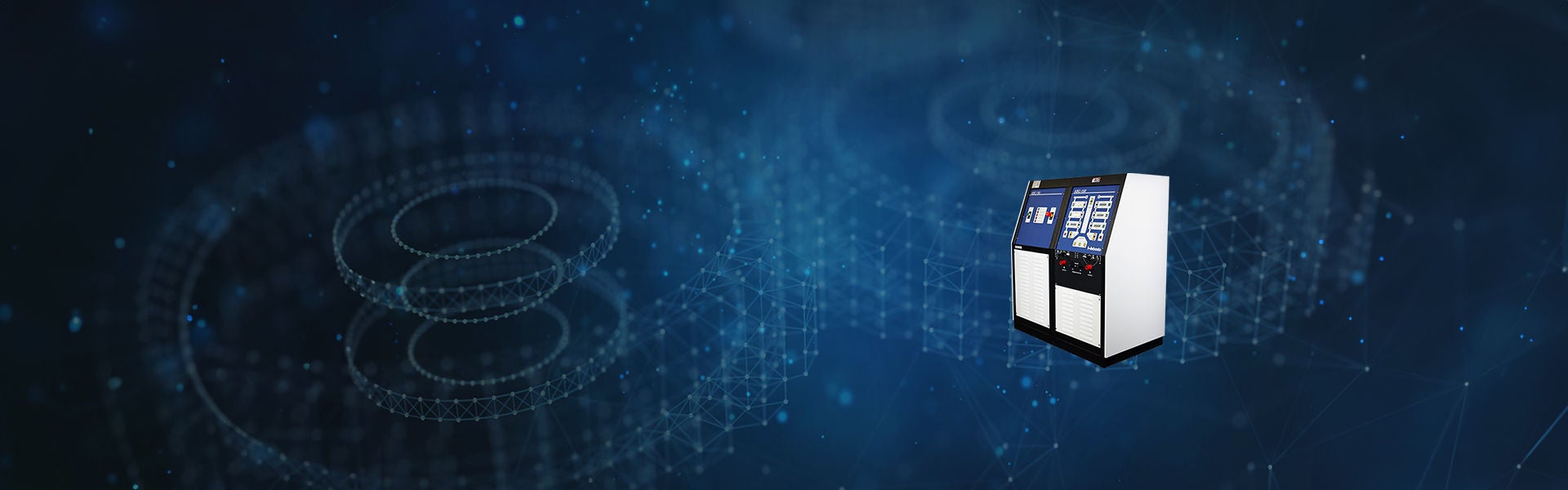

Product picture of power test system ABC-150 from Webasto

Benefits of Power Test System ABC-150

This state-of-the-art power system combines a 99 % power factor and 92+ % efficiency with dual independently controlled channels and analog control signal for precise operation. Safety features include automatic shutdown on power loss (Anti-Islanding), independent channel interlock, and load disconnect protection (camlock model). With easy front panel connections and an emergency stop button, it ensures user-friendly operation. Additionally, it offers flexible DC supply/load capabilities, fully programmable computer control, multiple interface options (manual, remote, ROS software, LabView, CAN, and 3rd party control software), remote voltage sense, and bi-directional load capability, catering to diverse applications with adaptability and efficiency.

Precision control

Achieve meticulous results with dual independent channels and analog control for fine-tuned operation.

Unmatched efficiency

Slash energy costs with a near perfect 99 % power factor and over 92 % regenerative efficiency.

Flexible operation

Bi-directional load capability and remote voltage sense allow you to adapt to a wide range of testing scenarios.

Enhanced safety

Automatic shutdown, channel interlock protection, and load disconnect prioritize operator and equipment safety.

Technical data Power Test System ABC-150

Technical specifications

Input voltage options3 Phase, 240 Vrms, +10 %/-15 %, <5 % imbalance
Currency draw325 A
Frequency

60 Hz (50 Hz available)

Isolation transformerRequires 150 KVA external isolation transformer
Power factor> 99 %
Harmonic distortion< 3 % THD; IEEE 519 Compliant
Multiple user interfacesManual; Remote Operation System (ROS); DCOM Driv er for LabVIEW; C++ and Visual Basic; CAN
Current ripple - independent & parallel mode< 0.5 Arms
Current ripple - max ripple from load< 15 Arms
Operating environment - temperature32 - 95 °F (0 - 35 °C)
Operating environment - humidity5-90 % non-condensing
Weight1,334 lbs (605 kg)
Dimensions46 x 26 x 55 in. (117 x 65 x 140 cm)
ConfigurationVoltage (Vdc)Current (Amps)Power (kW)

Independent+8 to +420-265 to +265-125 to +125
Optional range

+420 to +435

+435 to +445

-160 to +160

-90 to +90

-70 to +70

-40 to +40

Parallel+8 to +420-530 to +530-125 to +125
Optional range

+420 to +435

+435 to +445

-160 to +160

-90 to +90

-70 to +70

-40 to +40

MeasurementAccuracy (+/-)Resolution

Voltage250 mV or 0.15 % of the output voltage20 mV
Current independent (2 channels)100 mA or 0.25 % of the reading20 mA
Current external parallel (1 channel)200 mA or 0.35 % of the reading40 mA
