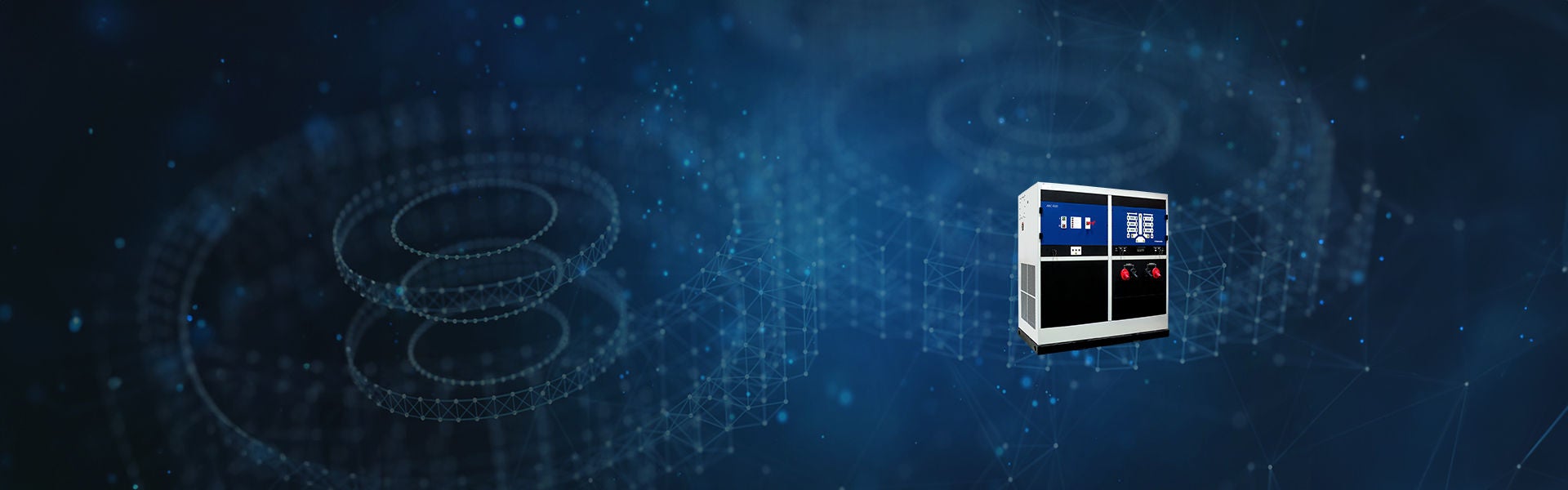

Power Test System
ABC-600
High voltage cycling station
Webasto's ABC-600 is a state-of-the-art high voltage cycling station that was originally developed to meet specific customer requirements, ensuring maximum flexibility and performance for demanding testing environments. This advanced system is ideal for testing hybrid and electric vehicles, high voltage drivetrains, electric motors, and energy storage devices such as lithium-ion battery packs, fuel cells, and supercapacitors.
The ABC-600 offers a robust power output of up to 150 kW, supporting a wide voltage range from 8 to 600 VDC and a current range of ±600 ADC. Its modular design enables seamless integration into various test bench configurations, while its bidirectional power capability allows for both charging and discharging cycles with high efficiency and precision.
Equipped with sophisticated control software and safety features, the ABC-600 ensures reliable operation, data acquisition, and monitoring of test processes. Its scalable architecture supports future upgrades and customization to meet evolving testing standards and protocols.
Designed for continuous operation in industrial and R&D environments, the ABC-600 provides outstanding performance in endurance testing, lifecycle analysis, and environmental simulations, helping manufacturers and developers accelerate innovation in the field of e-mobility and renewable energy systems.
Power Test System ABC-600
Benefits of Power Test System ABC-600
This advanced power system boasts a 99% power factor and efficiency of over 92 %, with dual independently controlled channels and analog control signal for precise operation. Safety features include automatic shutdown on power loss (Anti-Islanding), independent channel interlock, and load disconnect protection (camlock model). Its user-friendly design includes easy front panel connections and an emergency stop button. Additionally, it offers flexible DC supply/load capabilities, fully programmable computer control, multiple interface options (manual, remote, ROS software, LabView, CAN, and 3rd party control software), remote voltage sense, and bi-directional load capability, ensuring versatility and adaptability across various applications.
Technical data Power Test System ABC-600
- Technical specifications
- Operating range
- Accuracy & resolution
| Technical specifications | |
| Voltage | 600 V |
| AC voltage | 3 Phase 400, 440 and 480 VZC |
| AC current | 240, 218 and 200 Amps respectively |
| Power | > 0.99 |
| Power efficiency | .90 % |
| Weight | 5,900 lbs (2,676 kg) |
| Dimensions | 73" W x 76.5" H x 37" D (185cm W x 194cm H x 94cm D) |
| Configuration | Voltage (Vdc) | Current (Amps) | Power (kW) |
| Independent | +8 to +420 | -265 to +265 | -125 to +125 |
| Optional range | +420 to +435 +435 to +445 | -160 to +160 -90 to +90 | -70 to +70 -40 to +40 |
| Parallel | +8 to +420 | -530 to +530 | -125 to +125 |
| Optional range | +420 to +435 +435 to +445 | -160 to +160 -90 to +90 | -70 to +70 -40 to +40 |
| Measurement | Accuracy (+/-) | Resolution |
| Voltage | 0.1 % full scale | 50 mV |
| Current Independent (2 channels) | 0.1 % full scale | 20 mA |
