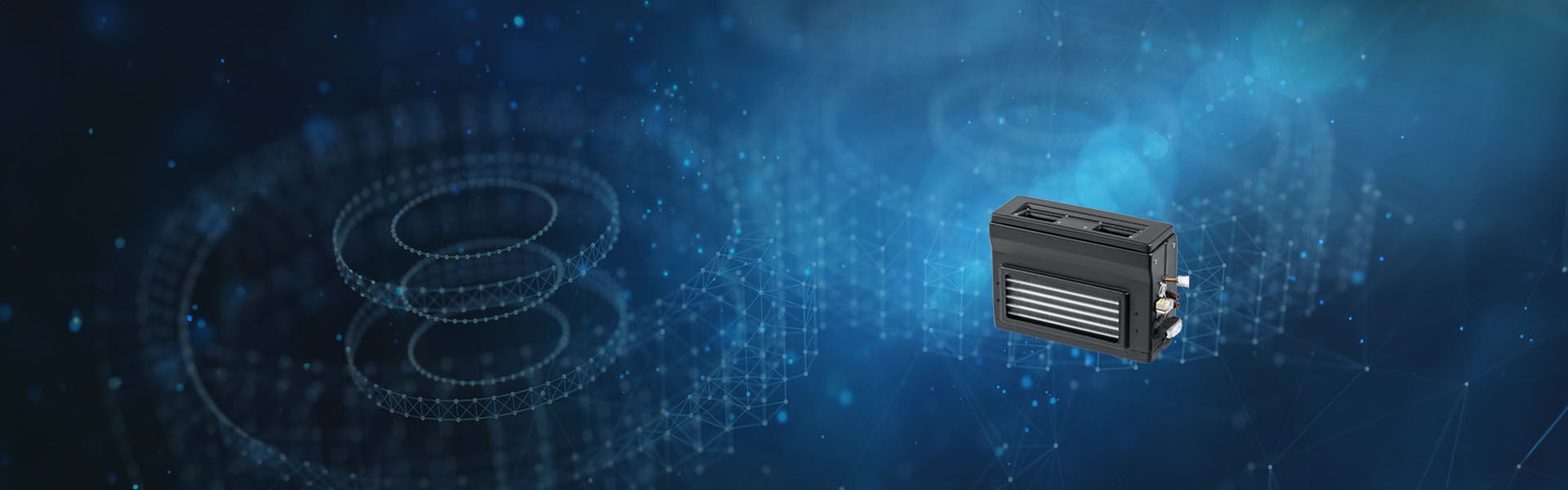

Ibiza
split system
Powerful 31,000 BTU cooling and 41,000 BTU heating for vertical installation
The Webasto Ibiza Vertical Heating and Cooling Evaporator delivers 31,000 BTU/h of cooling power and 41,000 BTU/h of heating, making it an ideal choice for commercial transportation vehicles. Designed for wall-mount applications, this unit integrates seamlessly into tight spaces, offering reliable air conditioning and heating. With variable temperature control and freeze protection, the Ibiza unit ensures optimal climate management across a range of environments, available in both 12 V and 24 V configurations.
Discover the advantages of the Ibiza split system
The Webasto Ibiza Vertical Heating and Cooling Evaporator is designed to provide reliable and efficient climate control in commercial vehicles. With a cooling capacity of 31,000 BTU/h and heating output of 41,000 BTU/h, this unit is well-suited for buses, trucks, and other transportation vehicles that require robust temperature management. The vertical design allows for easy wall mounting, maximizing interior space while maintaining effective airflow. The variable temperature control ensures precise climate regulation, while the integrated freeze protection thermostat safeguards the system in colder conditions. Available in both 12 V and 24 V configurations, the Ibiza unit is a versatile, high-performance solution for demanding transportation applications.
Product details
Product specifications
Cooling capacity: 31,000 BTU/h (9.0 kW)
Heating capacity: 41,000 BTU/h (12.0 kW)
Refrigerant: R134a
Nominal voltage: 12 V
Max. power consumption (12 V): 21.2 A
Max. air flow Evaporator Blower: 471 cfm (800 m³/h)
Dimensions (W x L x H): 25.2 x 7.1 x 14 in (640 x 180 x 355 mm)
Weight: 22 lbs (10 kg)
