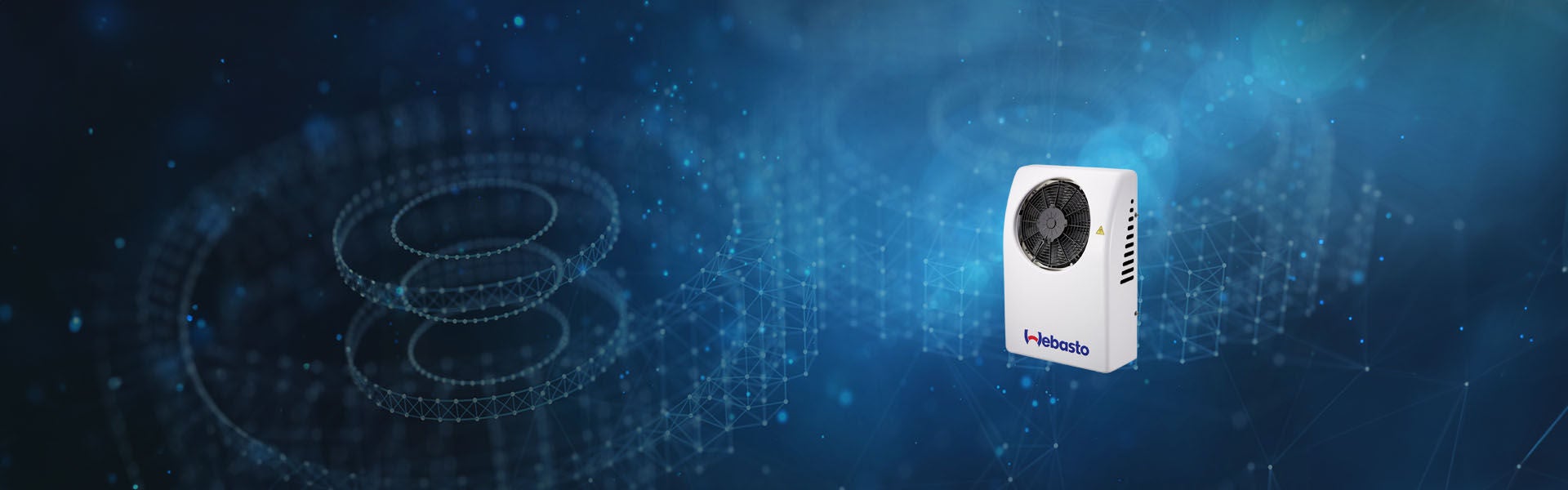

Cool Split 20 EVO
Engine-off Air Conditioning for heavy-duty trucks
The Webasto Cool Split 20 Evo provides 6,800 BTU/hr of engine-off cooling, giving drivers a quiet, comfortable place to rest while helping fleets cut idling, save fuel, and reduce emissions – supporting lower operating costs and compliance with anti-idling regulations. Its slim rear-mounted condenser and compact interior evaporator make installation easy across a wide range of trucks without sacrificing valuable space.
Drivers get simple, reliable control through a programmable cabin panel and multifunction remove, while built-in safeguards – including thermal and tilt shutoff, low-voltage monitoring, and earth-leakage detection, ensure dependable performance in demanding conditions. The Cool Split 20 Evo gives fleets an efficient, driver-friendly solution for staying cool on the road.
- Cool Top 20 EVO 1
- Cool Top 20 EVO 3
- Cool Top 20 EVO 4
- Cool Top 20 EVO 5
- Cool Top 20 EVO 6
- Cool Top 20 EVO 8
- Cool Top 20 EVO 9
Benefits of Cool Split 20 Evo
Product details
Product Specification
Cooling capacity: 6,800 BTU/h (2.0 kW)
Peak current power consumption: 11-58 Amps
LV voltage: 12 V
Dimensions (H x W x D) – condenser: 27.4 x 18.3 x 7.9 in(695 x 465 x 200 mm)
Dimensions (H x W x D) – evaporator: 11 x 25.6 x 6.7 in(280 x 650 x 170 mm)
Weight – condenser: 38.6 lbs (17.5 kg)
Weight – evaporator: 13.23 lbs (6 kg)
Low battery cut out: 11.6V
Model overview
- Cool Split 20 EVO
